Characteristic::
· Back electret condenser transducer
· High sensitivity and clear sound reproduction
· Smooth frequency response range
· Rugged and durable construction
· On/off magnetic-reed switch for on-stage control
· The gold plated XLR link makes audio frequency current with ideal transmission
Mode |

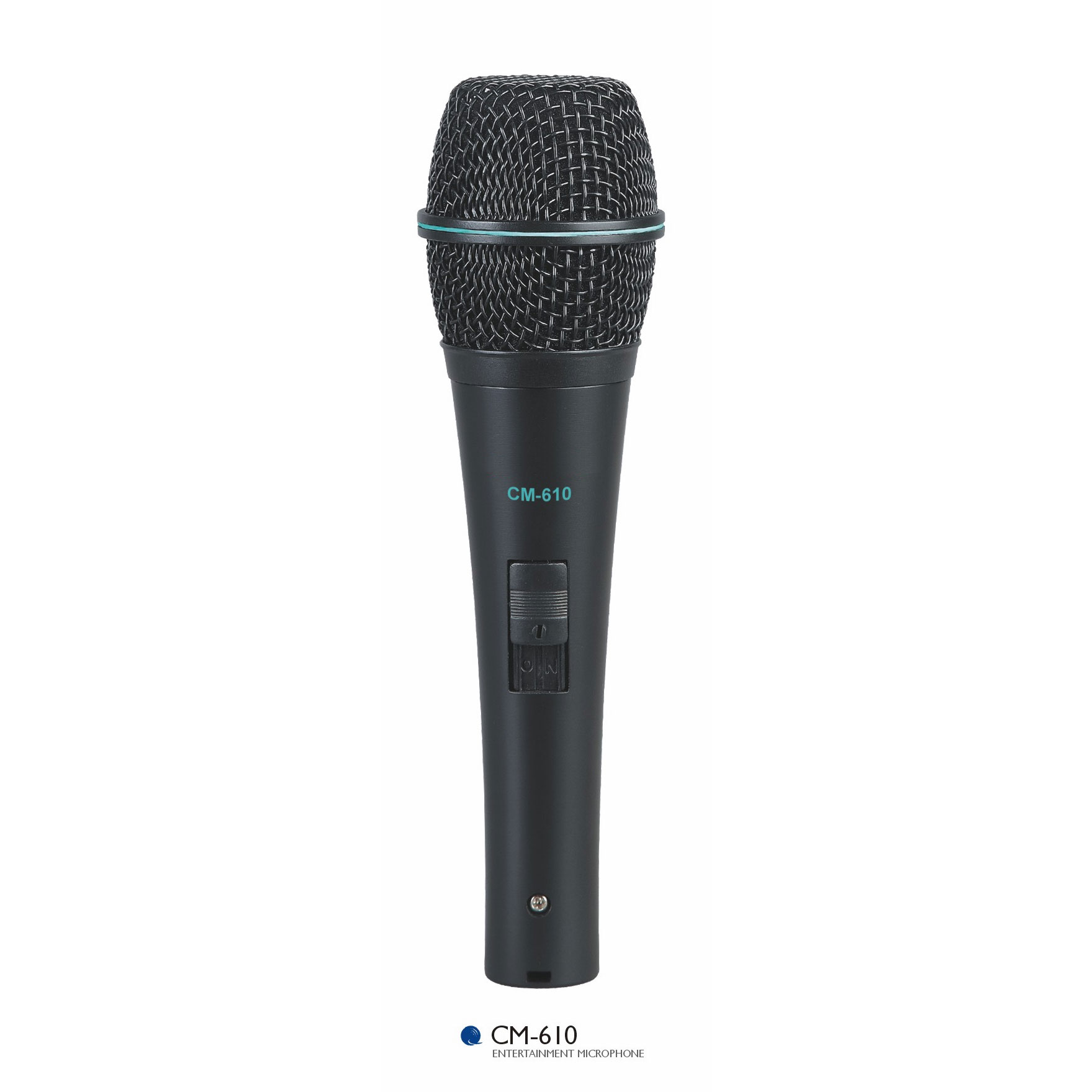

CM-610 |
Element |
Back Electret Condenser |
Polar Pattern |
Cardioid |
Frequency Response |
70Hz-10KHz |
Bass |
Built-in |
Sensitivity 48V/1.5V |
-48dB /-50dB±3dB(1dB=1V/Pa at 1kHz) |
Output Impedance 48V/1.5V |
500Ω/600Ω±20%(at 1kHz) |
Max.Input SPL 48V/1.5V |
130dB/115dB(T.H.D≤1% at 1kHz) |
Signal to Noise Ratio |
70dB(1KHz at 1Pa) |
Power Requirements |
48V DC/1.5V AA/UM3,2mA |
Switch |
ON/OFF |
Weight |
258g |
Body Dimensions |
Φ50x185mm |
Output Interface |
XLRM三针公卡侬 |
|
