Characteristic:
· 1.5V or 48V, two power are freely used in indoor and out door
· With broad balanced range of frequency response
· Easy to use with ON/OFF switch
· The gold plated XLR link makes audio frequency current with ideal transmission
Mode |

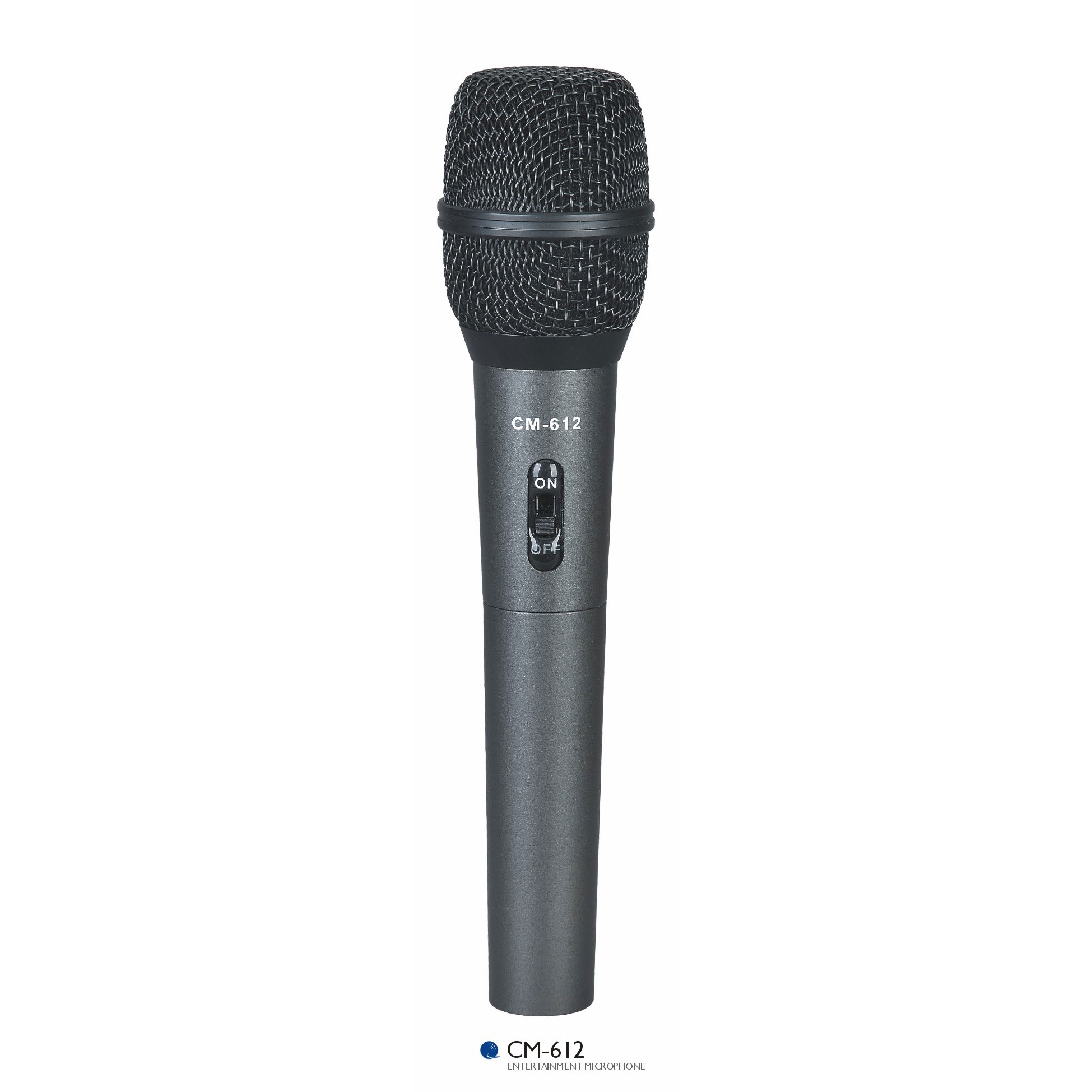

CM-612 |
Element |
Back Electret Condenser |
Polar Pattern |
Cardioid |
Frequency Response |
40Hz—16kHz |
Bass |
Built-in |
Sensitivity 48V/1.5V |
-36dB/-37dB±2dB(1dB=1V/Pa at 1kHz) |
Output Impedance |
48V/1.5V:500Ω/600Ω±20%(at 1kHz) |
Max.Input SPL 48V/1.5V |
130dB/115dB(T.H.D≤1% at 1kHz) |
Signal to Noise Ratio |
70dB(1KHz at 1Pa) |
Power Requirements |
48V DC/1.5V AA/UM3,2mA |
Switch |
ON/OFF |
Weight |
390g |
Body Dimensions |
Φ47x205mm |
Output Interface |
XLRM三针公卡侬 |
|
