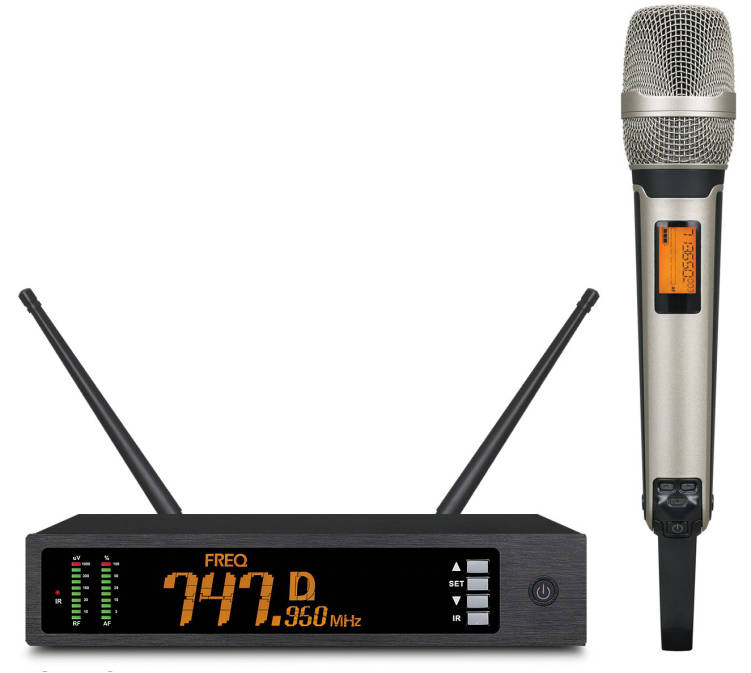

UD-9010 Read 704 Time:2018-3-22 | |||
7. Dynamic range: 100dB 8. The biggest deviation: ± 45KHz 9. Audio Response: 80Hz-18KHz (± 3dB) 10. Integrated signal to noise ratio:> 105dB 11. Comprehensive distortion: ≤ 0.5% 12. Operating temperature: -10 ℃ ~ 40 ℃
Receiver specifications: 1. Receiver mode: the second frequency superheterodyne 2. IF frequency: the first IF: 110MHz, the second IF 10.7MHz 3. Wireless interface: BNC / 50 4. Sensitivity: 12dBμV (80dBS / N) 5. Sensitivity range: 12-32dBμV 6.Spurious suppression: ≥ 75dB 7. Maximum output level: + 10dBV
Transmitter Specifications: 1. Antenna program: Pocket transmitter with a 1/4-wavelength whip antenna, hand-held microphone built-in spiral antenna 2. Output power: high frequency 30Mw, low frequency 3Mw 3. Spurious suppression: -60dB 4. Power supply: two AA DC 1.5V battery 5. Operating time: more than 10 hours at 30mW, more than 15 hours at 3mW |
